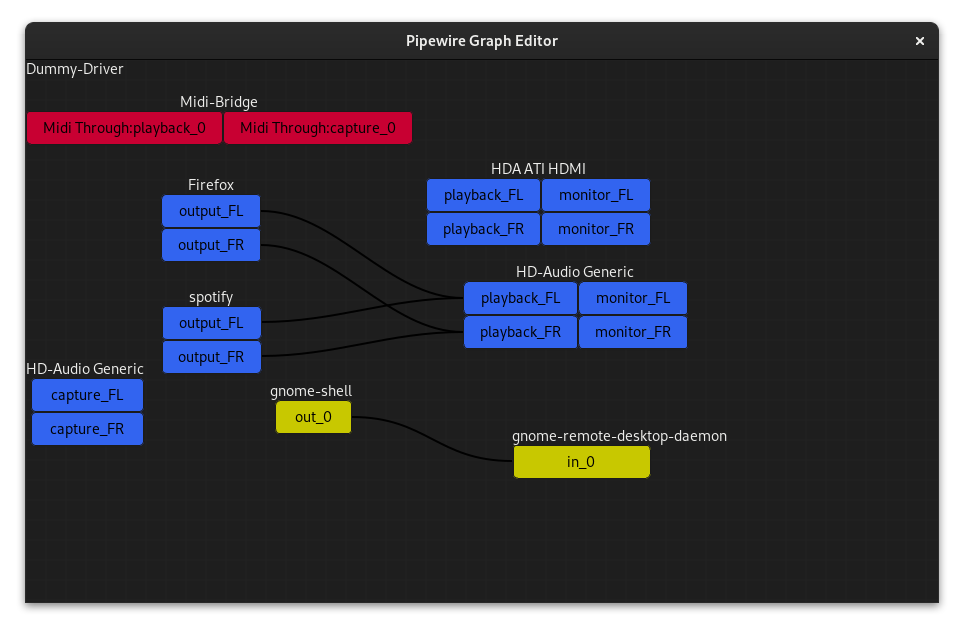

Helvum is a GTK-based patchbay for pipewire, inspired by the JACK tool catia.

Features planned

• Volume control
• "Debug mode" that lets you view advanced information for nodes and ports

More suggestions are welcome!

Building

Via flatpak (recommended)

The recommended way to build is using flatpak, which will take care of all dependencies and avoid any problems that may come from different system configurations.

First, install the required flatpak platform and SDK, if you dont have them already:

$ flatpak install org.gnome.{Platform,Sdk}//40 org.freedesktop.Sdk.Extension.rust-stable//20.08

To compile and install as a flatpak, run

$ flatpak-builder --install flatpak-build/ build-aux/org.freedesktop.ryuukyu.Helvum.json

You can then run the app via

$ flatpak run org.freedesktop.ryuukyu.Helvum

Manually

For compilation, you will need:

• Meson
• An up-to-date rust toolchain
• libclang-3.7 or higher
• gtk-4.0 and pipewire-0.3 development headers

To compile and install, run

$ meson setup build && cd build
$ meson compile
$ meson install

in the repository root. This will install the compiled project files into /usr/local.

License

Helvum is distributed under the terms of the GPL3 license. See LICENSE for more information.
